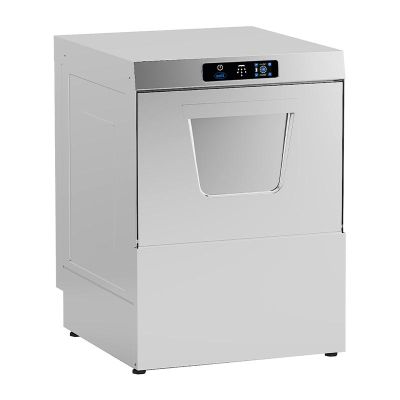

Öztiryakiler D Plus Dish Washing Machine with Drain, Polisher, Detergent Pump, Basket 50x50 cm

• Dishwasher Pump Type: Polisher + Detergent + Drain Pump
• Dishwasher Type: Under Counter

• Öztiryakiler D Plus Dish Washer 50x50 cm
• Body, boiler and wash tank made of stainless steel
• Monolithic hygienic wash tank with rounded corners
• Washing capacity of 35 baskets per hour (Basket dimensions 50cmx50cm)
• 8 liters of water consumption per wash cycle
• Water temperatures can be viewed from the front panel
• User-friendly digital control panel
• 5 different pre-selectable washing programs
• Savings in energy, detergent and water usage
• Wash arms available in stainless steel and reinforced polypropylene(PP)
• Height optimization by adjustable feet
• Easy to start; filling with water and heating the boiler and washing tanks in one touch
• Electrical components and wiring systems comply with international standards and safety regulations
• The whole body is insulated and IPX5 protection against water.
• Rinsing and washing temperatures are thermostatically controlled for effective washing.
• Valve system that prevents the water in the machine from returning to the installation
• Washing water temperature 55-60°C
• Rinse water temperature 80-85°C
• Fault status tracking on the screen

Technicial Specifications

• Type: Electric
• Width: 595mm
• Length: 655mm
• Height: 830mm
• Net Weight: 65 kg (+/-5)
• Gross Weight: 75 kg (+/-5)
• Volume: 0.33 m³
• Capacity: 560 Plates/Hour
• Electric Power: 5.5
• Volts: 230V - NPE
• Frequency: 50
• Hot Water Pressure: 2-4 bar
• Hot Water Hardness: 0-10 French Hardness
• Cold Water Inlet Diameter: 3/4''
• Cold Water Pressure: 2-4 bar
• Cold Water Hardness: 0-10 French Hardness
• Drainage Inlet Diameter: Ø 25
• Tank Volume: 30
• Boiler Volume: 6
• Washing Pump Flow: 356
• Boiler Heater Power: 5
• Tank Heater Power: 2
• Washing Pump Power: 0.66
• Washing Water Temperature: 55 - 60
• Drying Fan Power: -
• Maximum Noise: 75
• Protection Class: IPX5
• Product Origin: TURKEY
